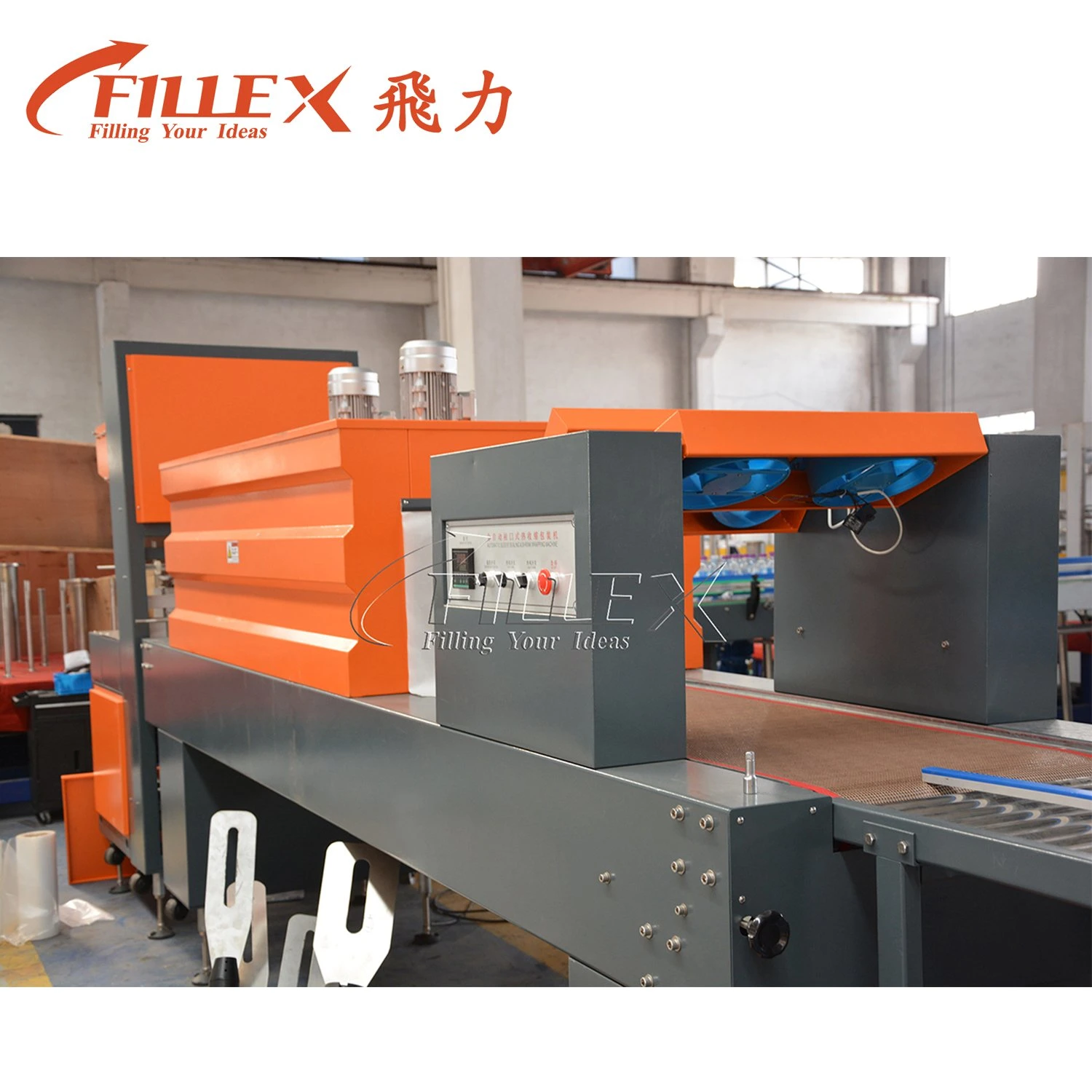

Automatic hot shrink film packaging machine can be used not only stand-alone, but also with other devices composed of packaging production line. It can be automatically arranged, collected row with PET beverage bottles or other similar items, and then shrink-wrapped. Finally, by shrinking, cooling and sizing out the finished product. Packaged products are bundled firm, neat appearance, artistic, and easy to open. It is widely used in food, pharmaceutical, chemical, and other light industrial products and other industries.
Features of Full-automatic WSP-10 Film Shrink Wrapping Packaging Machine:
1. Suitable to PE PVC film packaging.
2. PLC control system, automatic working.
3. Colorful touch-screen control panel, easy operate.
4. Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling automatically
5. Capacity is adjustable through adjust the convey speed
6. The height of the conveyor shall be made towards client's demand, can handle 6, 9, 12, 15, 18, 20, 24
Bottle per package
7. Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature
Controller that apparently saves energy.
8. The height of the conveyor shall be made towards client's demand.
9. Heavy duty coated iron machine construction
10. It applies wing shape stainless steel heating system, which is durable for long time use.
Features of Full-automatic WSP-10 Film Shrink Wrapping Packaging Machine:
1. Suitable to PE PVC film packaging.
2. PLC control system, automatic working.
3. Colorful touch-screen control panel, easy operate.
4. Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling automatically
5. Capacity is adjustable through adjust the convey speed
6. The height of the conveyor shall be made towards client's demand, can handle 6, 9, 12, 15, 18, 20, 24
Bottle per package
7. Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature
Controller that apparently saves energy.
8. The height of the conveyor shall be made towards client's demand.
9. Heavy duty coated iron machine construction
10. It applies wing shape stainless steel heating system, which is durable for long time use.
model | KCX450 /99 | KCX450 /120 | KCX450 /150 | Kcx450 /180 | |
Film width | 450mm | ||||
Packing speed | 30-180bag/min | ||||
Bag length | 70-400mm | 70-400mm | 100-400mm | 100-400mm | |
Bag width | 20-140mm | 20-140mm | 20-140mm | 20-140mm | |
Product height | 5-36mm | 15-52mm | 35-75mm | 45-110mm | |
Voltage | 220 v | 220 v | 220 v | 220 v | |
Machine Power | 3.5 kw | 3.6 kw | 3.6 kw | 3.6 kw | |
Shrink power | 15 kw | 15 kw | 15 kw | 15 kw | |
Weight kg | 1000kg | 1000kg | 1000kg | 1000kg | |
Machine size | 5700*1050*1700 mm |
